Albutt Bale Grab with Rollers

F301 Bale Grab with Rollers

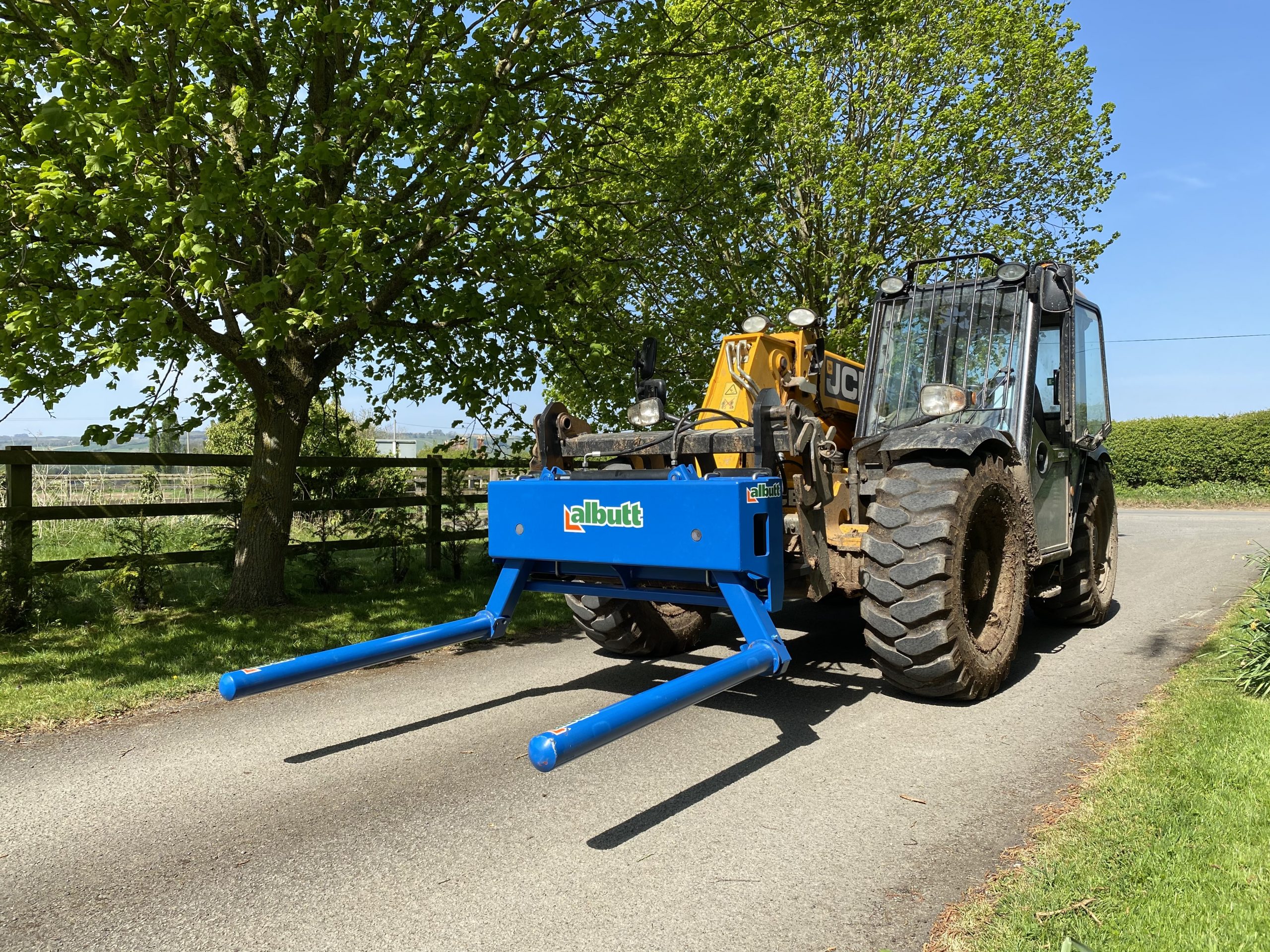

The Albutt F301 Bale Grab is designed to handle round, wrapped bales of silage. The heavy duty design features smooth and large flat face contact points, ensuring the bale wrap is protected. The rollers are free to spin on forged steel tines featuring two plain bearings to ensure free rotation around the tine. The rollers are quickly and easily removed to expose two 1100mm forged steel tines. This means the handler can then be used as a bale spike for round and square straw bales. Each roller is secured with a bolted latch which can be mounted on either side of the handler arm.

Features

  • Heavy duty design
  • Twin rollers over forged steel tines
  • Rollers feature plain bearings to sure free rotations
  • Simple latch for quick removal of rollers
  • Handle round wrapped silage bales
  • Handle round or square straw bales
  • Large diameter heavy duty arm pivots
  • Large smooth flat face to protect bale wrap
  • Recommended to be used with Albutt’s bolt on bracket system
Model Open Width Capacity Weight
F301 1425mm 1200kgs 195kgs
