The rotary harrows from the Zirkon range are optimally designed for maximum continuous loads. For perfect seedbed preparation in both conventional and conservation tillage – in all types of soils!
ZIRKON 8
The Zirkon 8 rotary harrow is designed for tractors with 60 to 175 HP. A wide range of accessories allow this rotary harrow to be adapted to any conditions of operation
ZIRKON 8/250 |
ZIRKON 8/300 |
ZIRKON 8/350 |
ZIRKON 8/400 |
ZIRKON 8/300 S |
Body Spacing |
250 |
300 |
350 |
400 |
300 |
Tractor output (HP) |
60 - 140 |
75 - 160 |
85 - 170 |
90 - 175 |
75 - 160 |
Tractor output (kW) |
44 - 103 |
55 - 118 |
62 - 125 |
66 - 129 |
55 - 118 |
Weight (kg) |
701 |
785 |
946 |
1015 |
808 |
Number of Rotors |
10 |
12 |
14 |
16 |
12 |
PTO rpm |
1000 |
1000 |
1000 |
1000 |
1000 |
Rotor speed (rpm) |
300 |
300 |
300 |
300 |
300 |

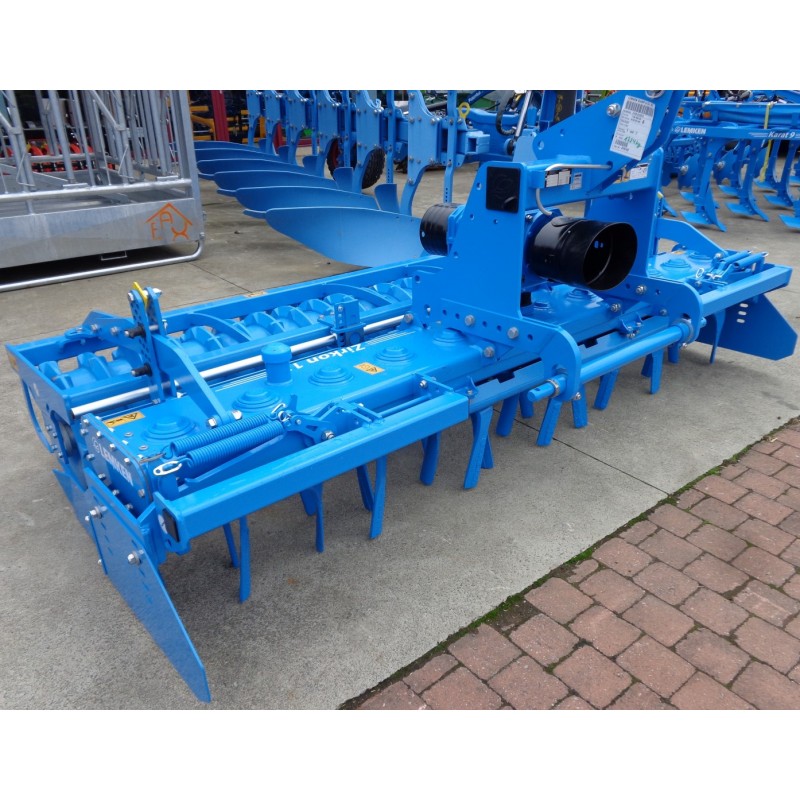

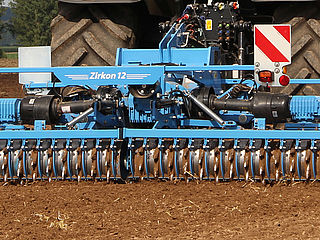

ZIRKON 12
LEMKEN’s Zirkon 12 rotary harrow is designed for maximum continuous loads for both conventional and conservation tillage. The active tools of the Zirkon 12 produce an intensive mixing and crumbling effect to about 15 cm working depth and thus prepare an optimal seedbed in virtually any soil conditions. The intensity of cultivation can be precisely controlled via the forward travel speed, the PTO speed and the rotary harrow gearbox.
|
ZIRKON 12/300 |
ZIRKON 12/350 |
ZIRKON 12/400 |
ZIRKON 12/450 |
Body Spacing |
300 |
350 |
400 |
450 |
Tractor output (HP) |
90 - 210 |
105 - 225 |
120 - 240 |
120 - 240 |
Tractor output (kW) |
66 - 154 |
77 - 165 |
88 - 176 |
88 - 176 |
Weight (kg) |
922 |
1035 |
1149 |
1261 |
Number of Rotors |
12 |
14 |
16 |
18 |
PTO rpm |
1000 |
1000 |
1000 |
1000 |
Rotor speed (rpm) |
440 |
440 |
440 |
440 |
|
ZIRKON 12/400 K |
ZIRKON 12/450 K |
ZIRKON 12/500 K |
ZIRKON 12/600 K |
Body Spacing |
400 |
450 |
500 |
600 |
Tractor output (HP) |
120 - 270 |
135 - 270 |
165 - 300 |
180 - 320 |
Tractor output (kW) |
88 - 199 |
99 - 199 |
121 - 221 |
132 - 235 |
Weight (kg) |
1762 |
1896 |
2066 |
2452 |
Number of Rotors |
16 |
18 |
20 |
24 |
PTO rpm |
1000 |
1000 |
1000 |
1000 |
Rotor speed (rpm) |
440 |
440 |
440 |
440 |
