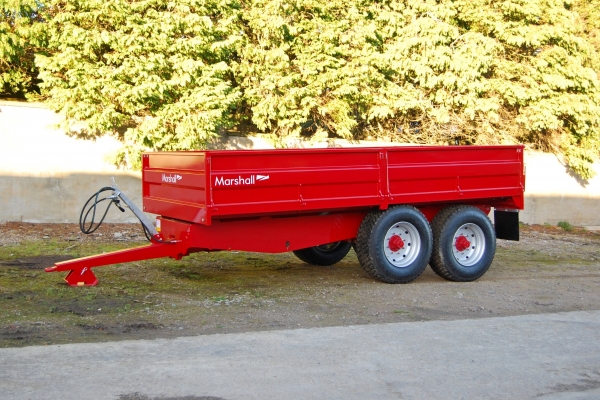

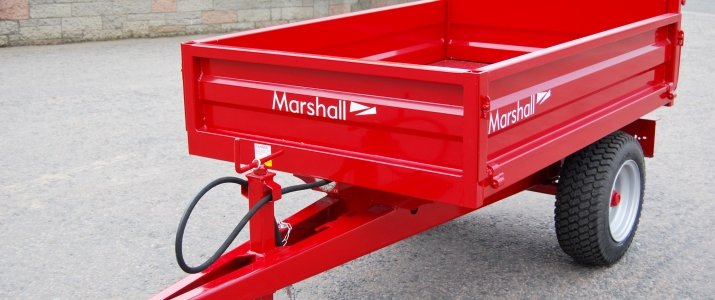

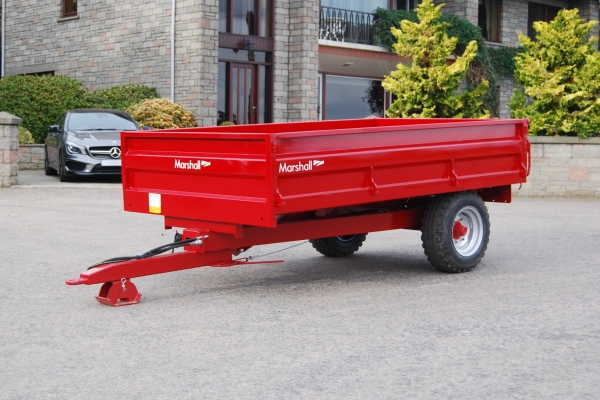

Marshall Drop Side Trailers
| S/1 | S/2 | S/4 | S/5 | S/6 | S/85 | S/10 | |
|---|---|---|---|---|---|---|---|
| Body Size - Imperial | 6' x 4' x 13" | 8' x 5' x 15" | 10' x 6' x 18" | 10' 6" x 6' 9" - 7' x 21" | 12' x 6' 9" - 7' x 21" | 14' x 7' 6" - 7' 9" x 24" | 16' x 7' 6" - 7' 9" x 24" |
| Standard Tyre Size | 23 x 8.5 x 12 | 26.0 x 12 | 10.0 x 15 - 10 ply | 12.5 x 15 - 14 ply | 12.5 x 15 - 14 ply | 12.5 x 15 - 14 ply | 385 - 65 x 22.5 |
| Axle | 50mm 5 stud | 50mm 5 stud | 60mm 6 stud | 70mm 6 stud | 70mm 6 stud | 70mm 6 stud Tandem | 80mm 8 stud Tandem |
| Brake | N/A | N/A | 250 x 60 | 300 x 60 | 300 x 60 | 300 x 60 | 350 x 90 |
| Carrying Capacity | 1.25 tons | 2 tons | 4 tons | 5 tons | 6.5 tons | 8.5 tons | 10.5 tons |
| Floor Thickness | 2.5mm | 2.5mm | 3mm | 3mm | 4mm | 4mm | 4mm |
| Side Thickness | 2.5mm | 2.5mm | 2.5mm | 2.5mm | 2.5mm | 2.5mm | 2.5mm |
| Lights | £161 / (DF-1) | £161 / (DF-1) | Standard | Standard | Standard | Standard | Standard |
| Hyd Brakes | £335 / (DF-1.5) | £335 / (DF-1.5) | Standard | Standard | Standard | Standard | Standard |
| Side Loading Panels | N/A | N/A | N/A | Standard | Standard | Standard | Standard |
| Volume Basic | 26 cu.ft / 0.74 cu.mtrs | 50 cu.ft / 1.41 cu.mtrs | 90 cu.ft / 2.55 cu.mtrs | 128 cu.ft / 3.62 cu.mtrs | 147 cu.ft / 4.16 cu.mtrs | 216 cu.ft / 6.1 cu.mtrs | 248 cu.ft / 7.0 cu.mtrs |
| Volume Grain | N/A | N/A | N/A | 238 cu.ft | 273 cu.ft | 434 cu.ft | 496 cu.ft |
| Volume Silage | N/A | N/A | N/A | 457 cu.ft | 525 cu.ft | 704 cu.ft | 930 cu.ft |
| Basic Trailer Weight | 365 kgs | 505 kgs | 905 kgs | 1007 kgs | 1360 kgs | 2310 kgs | 2746 kgs |
| Loading Height Basic | 40" / 1.02m | 45"/1.14m | 52"/1.32m | 58"/1.47m | 60"/1.52m | 65"/1.65m | 71"/1.80m |
| Tipping Mechanism | Single Hydraulic Ram | Single Hydraulic Ram | Single Hydraulic Ram | Single Hydraulic Ram | Single Hydraulic Ram | Twin Hydraulic Rams | Twin Chrome Hydraulic Rams |
