Trioliet Solomix 2

Categories: ,

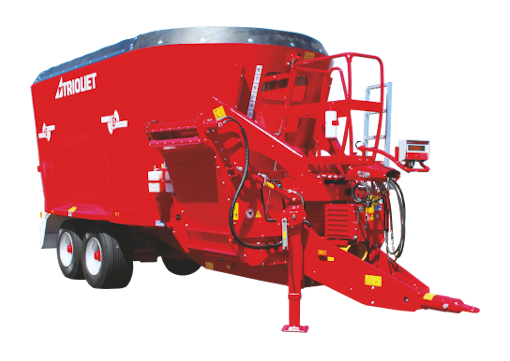

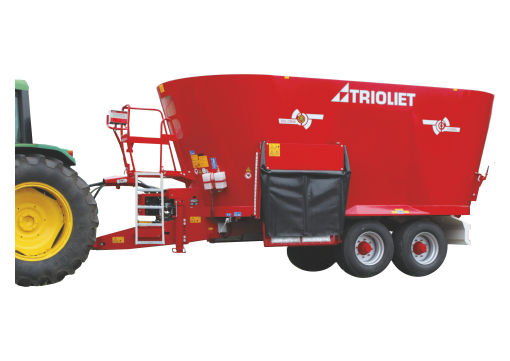

Solomix 2 VLH is a feed mixer with two vertical mixing augers and a front-discharging cross conveyor belt

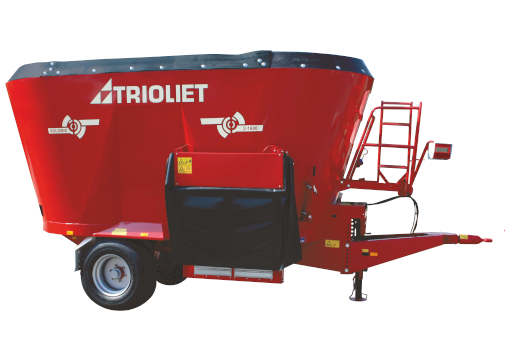

Solomix 2 ZK is a compact feed mixer with two vertical augers and a hydraulic discharge slide on both sides

Solomix 2 ZKX is a robust feed mixer with two vertical augers and a hydraulic discharge door on both sides

Solomix 2 VLX is a heavy-duty feed mixer with two vertical augers. The feed mixer is available in four different discharge options



Standard features

  • 2 Twin Stream augers (22 mm flighting / 25 mm wings)
  • 2 Reversible restrictor blades
  • Wide-angle PTO shaft with 1,3/8 - 6 profile
  • Adjustable and reversible drawbar with 40 mm drawbar eye (European standard)
  • Two large single wheels
  • Control by bowden cable
  • Wear ring
  • Hydraulic brake system
  • Trioform auger knives short
  • Larger discharge door with rounded edges for better discharge
  • Dual Flow: Improved shape of the mixing tub and offset inserts
  • New stairs with platform and windows, in height adjustable arm for weighing indicator and guidance of hydraulic hoses with storage possibility



Technical specifications

Solomix 2 VLH 1200 1400 1500 1600 1600L 1800 2000 2000L 2400
Capacity m3 12 14 15 16 16 18 20 20 24
Length m 6,57 6,73 7,05 7,09 7,52 7,56 7,61 7,99 7,68
Width m 2,22-2,42* 2,22-2,42* 2,28-2,45* 2,28-2,45* 2,29-2,46* 2,29-2,46* 2,29-2,46* 2,44-2,54* 2,44-2,54*
Height m 2,51 2,74 2,64 2,77 2,69 2,83 3,02 2,70 3,23
PTO RPM 540 540 540 540 540 540 540 540 540
Tractor power requirement HP (kW) 82 (60) 82 (60) 85 (62) 85 (62) 102 (75) 102 (75) 102 (75) 112 (82) 109 (80)
Tyre size 400/45
L 17.5
(2 x)		 400/45
L 17.5
(2 x)		 235/75
R 17.5
(4 x)		 235/75
R 17.5
(2 x.)		 435/50
R 19.5
(2 x)		 435/50
R 19.5
(2 x)		 435/50
R 19.5
(2 x)		 435/50
R 19.5
(2 x)		 435/50
R 19.5
(2 x)

.

Solomix 2 VLH-T 1600L 1800 2000 2000L 2400 2400L 2800
Capacity m3 16 18 20 20 24 24 28
Length m 7,52 7,56 7,61 7,99 7,68 8,08 8,18
Width m 2,29-2,46* 2,29-2,46* 2,29-2,46* 2,44-2,54* 2,44-2,54* 1,99 2,54
Height m 2,74 2,87 3,06 2,74 3,27 3,02 3,33
PTO RPM 540 540 540 540 540 5400/1000 540/1000
Tractor power requirement HP (kW) 102 (75) 102 (75) 102 (75) 112 (82) 109 (80) 120 (88) 140 (103)
Tyre size 435/50
R 19.5
(4 x)		 435/50
R 19.5
(4 x)		 435/50
R 19.5
(4 x)		 435/50
R 19.5
(4 x)		 435/50
R 19.5
(4 x)		 435/50
R 19.5
(4 x)		 435/50
R 19.5
(4 x)

Solomix 2 VLL 1000 1200 1200L 1400 1600 1600L 1800 2000 2000L 2400 2800
Capacity m3 10 12 12 14 16 16 18 20 20 24 28
Length m 5,56 5,63 6,50 6,58 6,64 7,09 7,13 7,20 7,60 7,68 7,78
Width* m 2,14 2,15 2,29-2,46* 2,29-2,46* 2,29-2,46* 2,44-2,54* 2,44-2,54* 2,44-2,54* 2,85 2,85 2,85
Height m 2,40 2,67 2,46 2,77 2,94 2,58 2,74 2,95 2,76 3,00 3,36
PTO RPM 540 540 540 540 540 540 540 540 540 540 1000
Tractor power requirement HP (kW) 66 (48) 66 (48) 75 (55) 75 (55) 82 (60) 85 (62) 85 (62) 96 (70) 102 (75) 109 (80) 120 (88)
Tyre size (2x) 315/80
R 22.5		 315/80
R 22.5		 315/80
R 22.5		 315/80
R 22.5		 315/80
R 22.5		 315/80
R 22.5		 315/80
R 22.5		 315/80
R 22.5		 19,5
R 22.5		 19,5
R 22.5		 19,5
R 22.5
Solomix 2 ZK 1200 1400 1500 1600 1600L 1800 2000 2000L 2400 2400L
Capacity m3 12 14 15 16 16 18 20 20 24 24
Length m 6,05 6,12 6,44 6,48 6,91 6,95 7,00 7,38 7,07 7,46
Width m 2,29 2,26 2,39 2,38 2,49 2,49 2,49 2,70 2,54 2,78
Height m 2,51*** 2,74 2,64*** 2,77 2,69*** 2,83*** 3,02 2,70*** 3,23 2,97
PTO RPM 540 540 540 540 540 540 540 540 540 540/1000
Tractor power requirement HP (kW) 82 (60) 82 (60) 85 (62) 85 (62) 102 (75) 102 (75) 102 (75) 112 (82) 109 (80) 120 (88)
Tyre size (2x) 400/45
L 17.5		 400/45
L 17.5		 235/75
L 17.5		 235/75
L 17.5		 435/50
R 19.5		 435/50
R 19.5		 435/50
R 19.5		 435/50
R 19.5		 435/50
R 19.5		 435/50
R 19.5



.

Solomix 2 ZK-T 1600L ZK-T 1800 ZK-T 2000 ZK-T 2000L ZK-T 2400 ZK-T 2400L ZK-T
Capacity m3 16 18 20 20 24 24
Length m 6,81 6,95 7,00 7,38 7.07 7,46
Width m 2,46 2,49 2,49 2,70 2,54 2,78
Height m 2,73*** 2,87*** 3,06 2,74*** 3,27 3,02
PTO RPM 540 540 540 540 540 540/1000
Tractor power requirement HP (kW) 102 (75) 102 (75) 102 (75) 112 (82) 109 (80) 112 (82)
Tyre size (4x) 435/50
R 19.5		 435/50
R 19.5		 435/50
R 19.5		 435/50
R 19.5		 435/50
R 19.5		 435/50
R 19.5
Solomix 2 ZKX 2400L 2800 2400L ZKX-T 2800 ZKX-T 3200 ZKX-T 3600 ZKX-T*
Capacity m3 24 28 24 28 32 36
Length m 7,72 7,79 7,72 7,79 8,23 8,29
Width m 2,78 2,77 2,78 2,77 2,97 3,02
Height m 3,02 3,35 3,04 3,44 3,44 3,54
PTO RPM 1000 1000 1000 1000 1000 1000
Tractor power requirement HP (kW) 120 (88) 130 (95) 120 (88) 130 (95) 150 (110) 177(130)
Tyre size 275/70
R 22.5
(4 x)		 315/80
R 22.5
(4 x)		 435/50
R 19.5
(4 x)		 385/65
R 22.5
(4 x)		 385/65
R 22.5
(4 x)		 275/70
R 22.5
(8 x)
Solomix 2 VLX 2400L 2800 3200 3600*
Capacity m3 24 28 32 36
Length m 8,30 8,37 8,80 8,87
Width m (excl. doseerunit) 2,66 2,66 2,80 3,00
Height m 3,04 3,44 3,44 3,54
PTO RPM 1000 1000 1000 1000
Tractor power requirement HP (kW) 120 (88) 130 (95) 150 (110) 177 (130)
Tyre size 435/50
R 19.5
4 x		 385/65
R 22.5
4 x		 385/65
R 22.5
4 x		 275/70
R 22.5
8 x
