Albutt Shear King

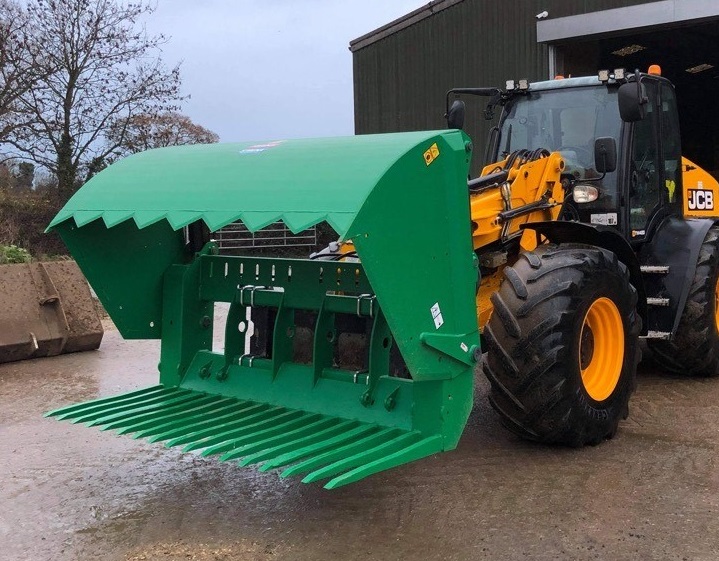

The Albutt Shear King high capacity shear grab is designed to be used with telehandlers and wheeled loaders with a minimum lift of 4 tonnes. The grabs have a capacity of 2.20m3 and 2.50m3 and a width of 2.20m and 2.50m. Users wanting to handle large amounts of silage and maximise their machines’ productivity are the ideal customers for this new grab. With a large capacity, the number of cuts and journey times can be reduced, improving silage quality and handling efficiency.
Features
- Suitable for machines with a 4 tonne plus lift
- Hardox tines welded into heavy duty box section; 15 or 17
- High tensile STRENX front blade
- Hardox cutting blades to the front and side of the grab
- Twin double acting hydraulic rams; 125mm bore
- Heavy duty box sections; 10mm wall
- Grab pivots 60mm and bushed, ram pivots 40mm and bushed
- Front grab double skinned for maximum strength
- Long term reliability with a great cut for a clean clamp face
- Suitable for grass, maize and wholecrop
- Height 1229mm / Depth 1323mm / Jaw Opening 1111mm
- Optional Ejector Gate
- Recommended to be used with Albutt’s bolt on bracket system
Model | Tines | Width | Weight | m3 |
---|---|---|---|---|
SK220HX | 15 | 2.20m | 1320kgs | 2.20m3 |
SK250HX | 17 | 2.50m | 1390kgs | 2.50m3 |
