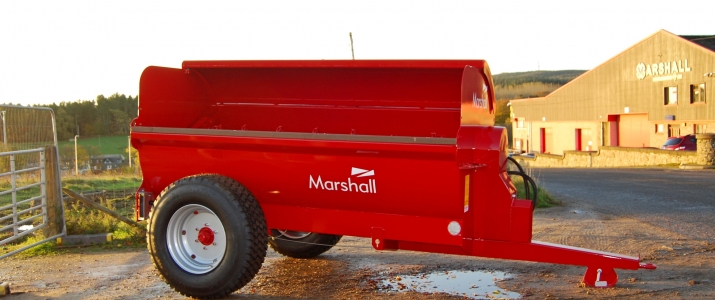

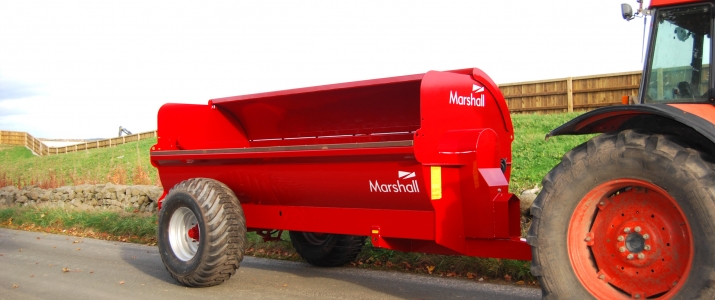

Marshall Muck Spreaders
| MS60 | MS75 | MS90 | MS105 | |
|---|---|---|---|---|
| Standard Tyre Size | 12.5 x 15 - 14 ply | 385 - 65 x 22.5 | 385 - 65 x 22.5 | 550 - 60 x 22.5 |
| Axle | 70mm 6 stud | 70mm 6 stud | 70mm 6 stud | 80mm 8 stud |
| Brakes | 300 x 60 | 300 x 60 | 300 x 60 | 350 x 90 |
| Volume Capacity | 6 cu. yds / 4.6 cu.mtrs / 1000gal | 7.5 cu. yds / 5.7 cu.mtrs / 1250gal | 9 cu. yds / 6.9 cu.mtrs / 1500gal | 10.5 cu. yds / 8 cu.mtrs / 1750gal |
| Hydraulic Brakes | Standard | Standard | Standard | Standard |
| Hydraulic Lid | Standard | Standard | Standard | Standard |
| Drum Thickness | 4mm | 4mm | 4.5mm | 4.5mm |
| Ends | 6mm | 6mm | 6mm | 6mm |
| Case Hardened Chain Flails | 1/2" / 13mm | 1/2" / 13mm | 9/16" / 14mm | 9/16" / 14mm |
| Flail Chain - Quantity | 28 | 28 | 36 | 40 |
| HP Requirements | 55 | 65 | 85 | 95 |
| End Height | 73" | 81" | 82" | 82" |
| Loading Height | 51" | 58" | 59" | 62" |
| Body Dimension | 10' x 54" | 10' x 57" | 12' x 60" | 14' x 60" |
| Lights | Standard | Standard | Standard | Standard |
| Basic Spreader Weight | 1330 kg | 1440 kg | 1930 kg | 2220 kg |
