Trioliet Solomix 1
Solomix 1 ZK Feed mixer

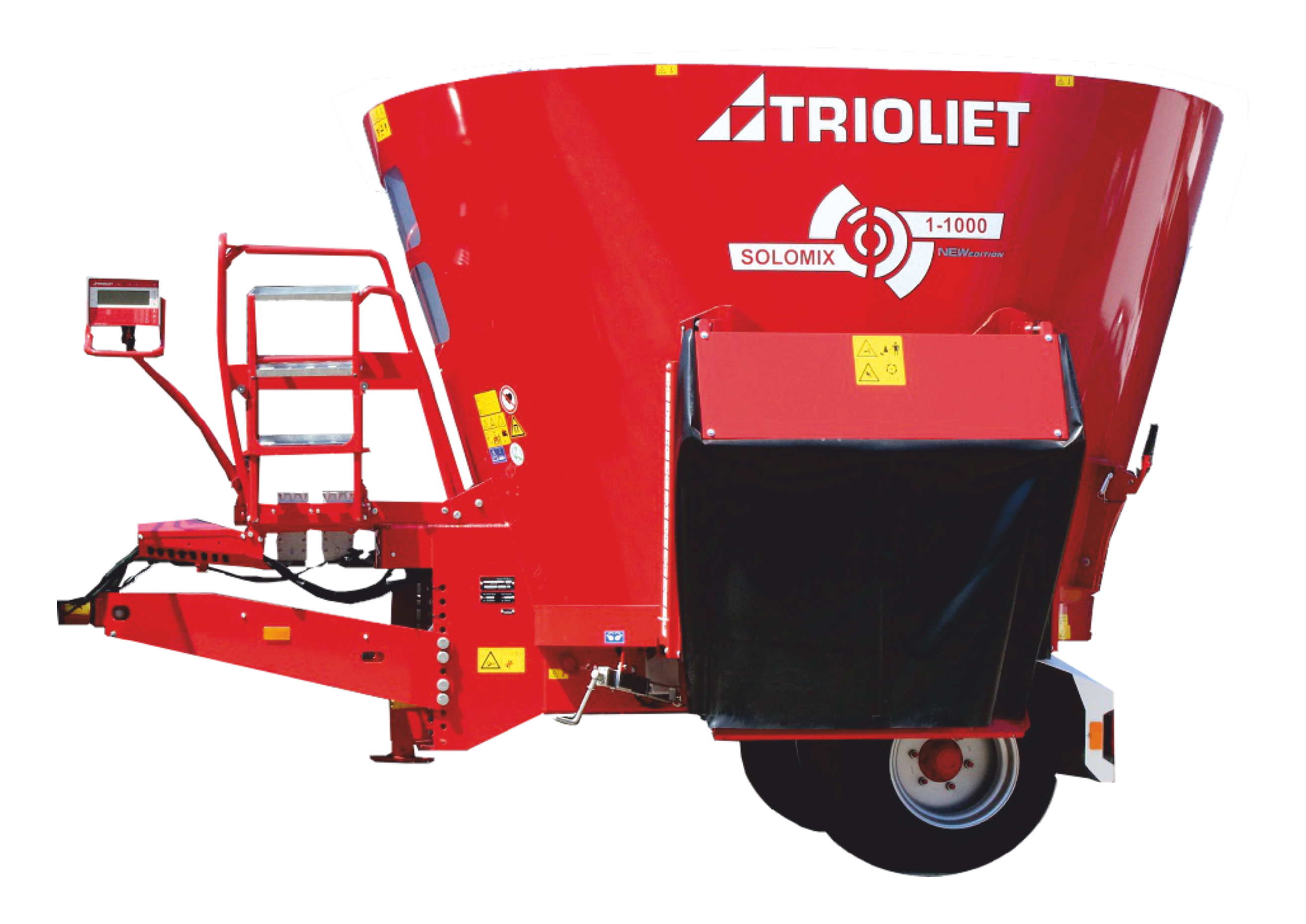

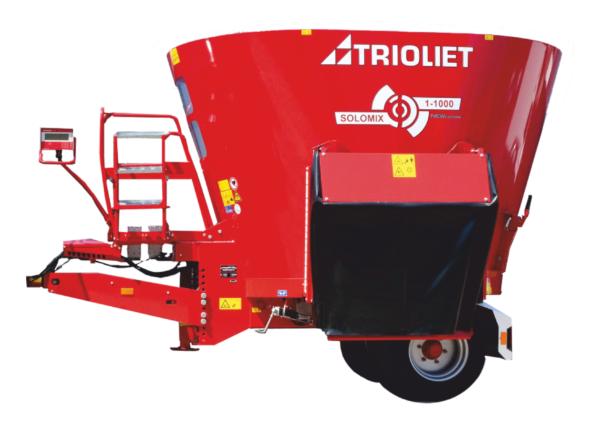

The renewed Solomix 1 ZK(L) is a compact diet feeder, featuring a single vertical auger and a hydraulic discharge slide on both sides. This trailed feed mixer is suitable for both large and small-scale livestock breeders and is available in volumes from 5-14 m³. The Solomix 1 ZK is available in a range of different heights. The exceptional simplicity of this mixer feeder means any maintenance costs are minimal, while the machine is furthermore extremely easy to use.
Standard features
- One Twin Stream vertical auger (15 mm flighting/18 mm wings)
- One or two restrictor blade(s)
- Wide-angle PTO shaft
- Adjustable and reversible drawbar for top connection with 40 mm drawbar eye (European standard) (800/1400)
- New, in height adjustable arm for the weighing indicator
- Drawbar for top connection with 40 mm drawbar eye (European standard)
- Directly operated by tractor hydraulics
- Two side discharge doors
- Wear ring
- With hydraulic brakes (not for 500 ZK)
- Manual adjustable discharge chutes (800-1400)
- New protection and cover for hydraulic hoses and wires with storage possibility
- Trioform auger knives short
- Two Large single wheels
- Side doors with rounded edges for better discharge (700/900)
- Flexible and spacious side door covers (not 500)
- Rubber side door covers (500)
- New platform with stairs and windows (700/900)
Technical specifications
| Solomix 1 ZK | 500 | 700 | 800 | 900 | 1000 | 1000L | 1200 | 1200L | 1400 |
|---|---|---|---|---|---|---|---|---|---|
| Capacity m3 | 5 | 7 | 8 | 9 | 10 | 10 | 12 | 12 | 14 |
| Length m | 4,16 | 4.32 | 4.52 | 4.43 | 4.61 | 4.76 | 4.67 | 4.85 | 4.93 |
| Width m | 2.18 | 2.29 | 2.47 | 2.28 | 2.46 | 2.70 | 2.47 | 2.70 | 2.70 |
| Height m | 2.16 | 2.40 | 2.50 | 2.77 | 2.78 | 2.49 | 2.97 | 2.77 | 3.02 |
| PTO RPM | 540 | 540 | 540 | 540 | 540 | 540 | 540 | 540 | 540 |
| Tractor power requirement HP (kW) | 55 (40) | 55 (40) | 66 (48) | 60 (44) | 68 (50) | 75 (55) | 75 (55) | 82 (60) | 82 (60) |
| Tyre size (2x) | 10.0/75-15.3 | 340/55-16 | 400/45 L 17.5 |
340/55-16 | 400/45 L 17.5 |
400/45 L 17.5 |
400/45 L 17.5 |
400/45 L 17.5 |
400/45 L 17.5 |
Solomix 1 VLH Feed mixer

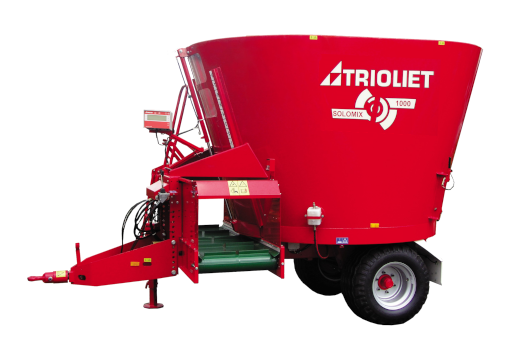

The Solomix 1 VLH-B is a compact diet feeder, featuring a single vertical auger and a cross conveyor belt (B) in the front. The mixer wagon is also available with a curved (C) cross conveyor chain (K). This trailed feed mixer is suitable for both large and small scale livestock breeders and is available in volumes from 8 - 14 m³. The Trioform auger knives are mounted at horizontal position on the auger flighting. This ensures an optimum cutting performance with less resistance in the feed (fuel saving). The patented Trioform auger knives are self-sharpening and the special shape lead up to a higher strength and long life. Its specific characteristics and high quality make the mixer feeder wagon unique, efficient and very easy to work with.
Technical specifications
| Solomix 1 VLH | 800 | 1000 | 1000L | 1200 | 1200L | 1400 |
|---|---|---|---|---|---|---|
| Capacity m3 | 8 | 10 | 10 | 12 | 12 | 14 |
| Length m | 4,74 | 4,82 | 4,99 | 4,87 | 5,08 | 5,16 |
| Width m | 2,30 | 2,29-2.30 | 2,44-2-54 | 2,29-2.30 | 2,44-2.54 | 2.44-2.54 |
| Height* m | 2.50 | 2.78 | 2.49 | 2.94 | 2.78 | 3.02 |
| PTO RPM | 540 | 540 | 540 | 540 | 540 | 540 |
| Tractor power requirement HP (kW) | 66 (48) | 68 (50) | 75 (55) | 75 (55) | 82 (60) | 82 (60) |
| Tyre size (2x) | 400/45 L 17.5 |
400/45 L 17.5 |
400/45 L 17.5 |
400/45 L 17.5 |
400/45 L 17.5 |
400/45 L 17.5 |
