Albutt Bale Spike
Features
- Several models for various bale sizes and machine types
- Tines bushed in main frame
- All models normally kept in stock
- Recommended to be used with Albutt’s bolt on bracket system
- Heavy wall box section frames
- Bales quoted based on the below sizes.
- Rounds - up to 6'
- Hesstons - 1200mm x 1200mm - 6 strings
- Mini Hesstons - 800mm x 800mm - 4 strings
- Quadrants - 1200mm x 700mm - 6 strings
- Mini Quadrants - 1200mm x 450mm - 6 strings

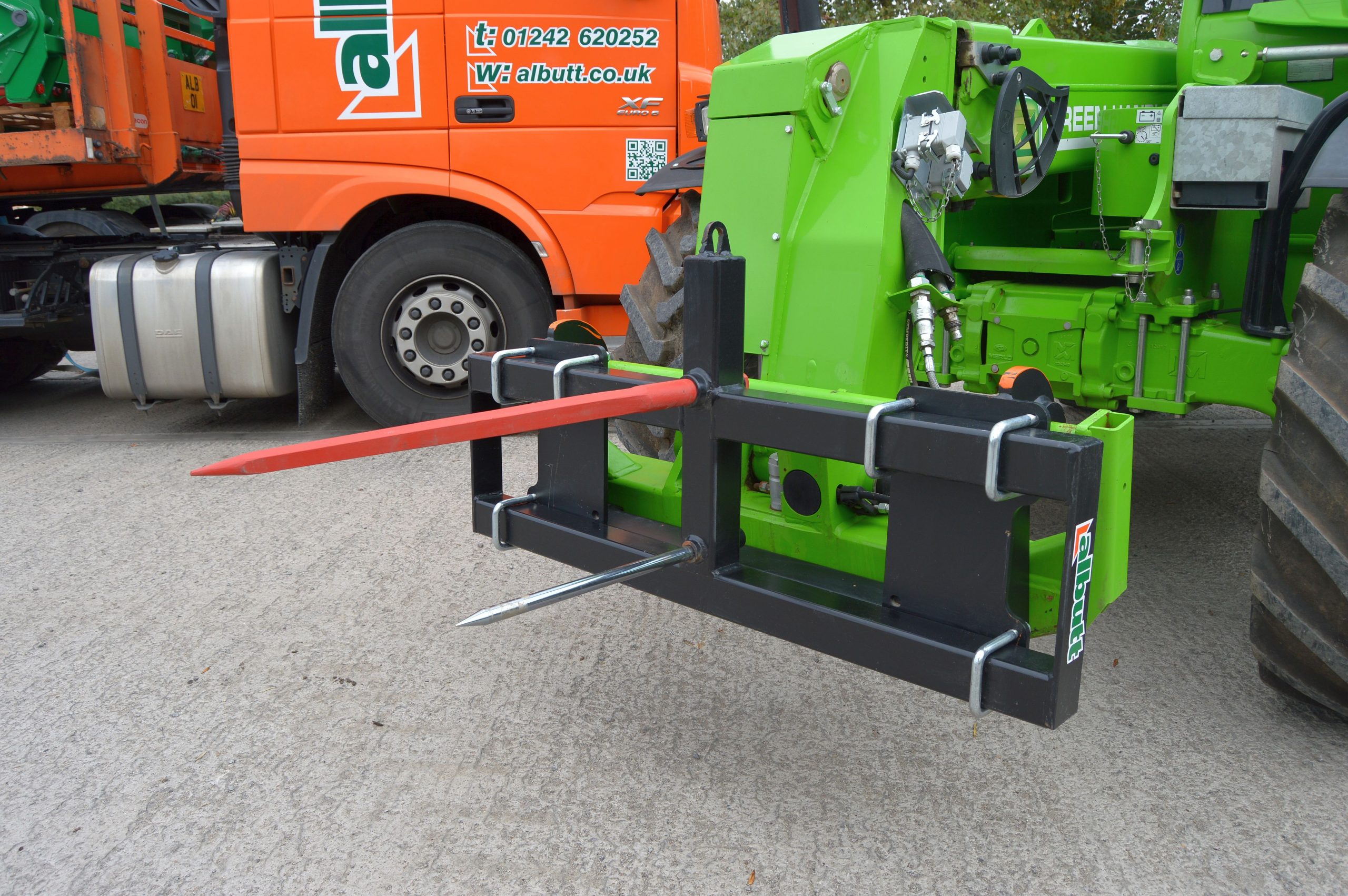

Combi-Spikes
- 2 x 810mm base tines
- Optional 980mm top tine
- Optional Bale Support Arms – increases height to 1240mm
- Brackets integrated into main frame
- Normally in stock
- Available with JCB Q Fit, Pin and Cone, Euro, Merlo or Manitou Brackets
- Cost effective
- Tines bushed into main frame
- Suitable for round or rectangular bales
- 650mm between bottom tines
Model | No. Tines | Brackets | Weight |
---|---|---|---|
ES100 | 2 x 810mm | Euro | 43kgs |
CS100JCB | 2 x 810mm | JCB Q Fit | 82kgs |
CS100PC | 2 x 810mm | Pin & Cone | 82kgs |
CS100MAN | 2 x 810mm | Manitou | 82kgs |
CS100MER | 2 x 810mm | Merlo | 82kgs |
Round Bale Spikes
- Substantial heavy duty box section design
- F100 for one round bale
- F110 for two round bales
- F100 1 x 980mm tine with 1 support tine
- F110 2 x 980mm tines with 2 support tines
- Normally in stock
- Recommended to be used with Albutt’s bolt on bracket system
Model | Width | Will Handle | Weight |
---|---|---|---|
F100 | 1350mm | 1 x Round Bale | 55kgs |
F110 | 1500mm | 2 x Round Bales | 75kgs |

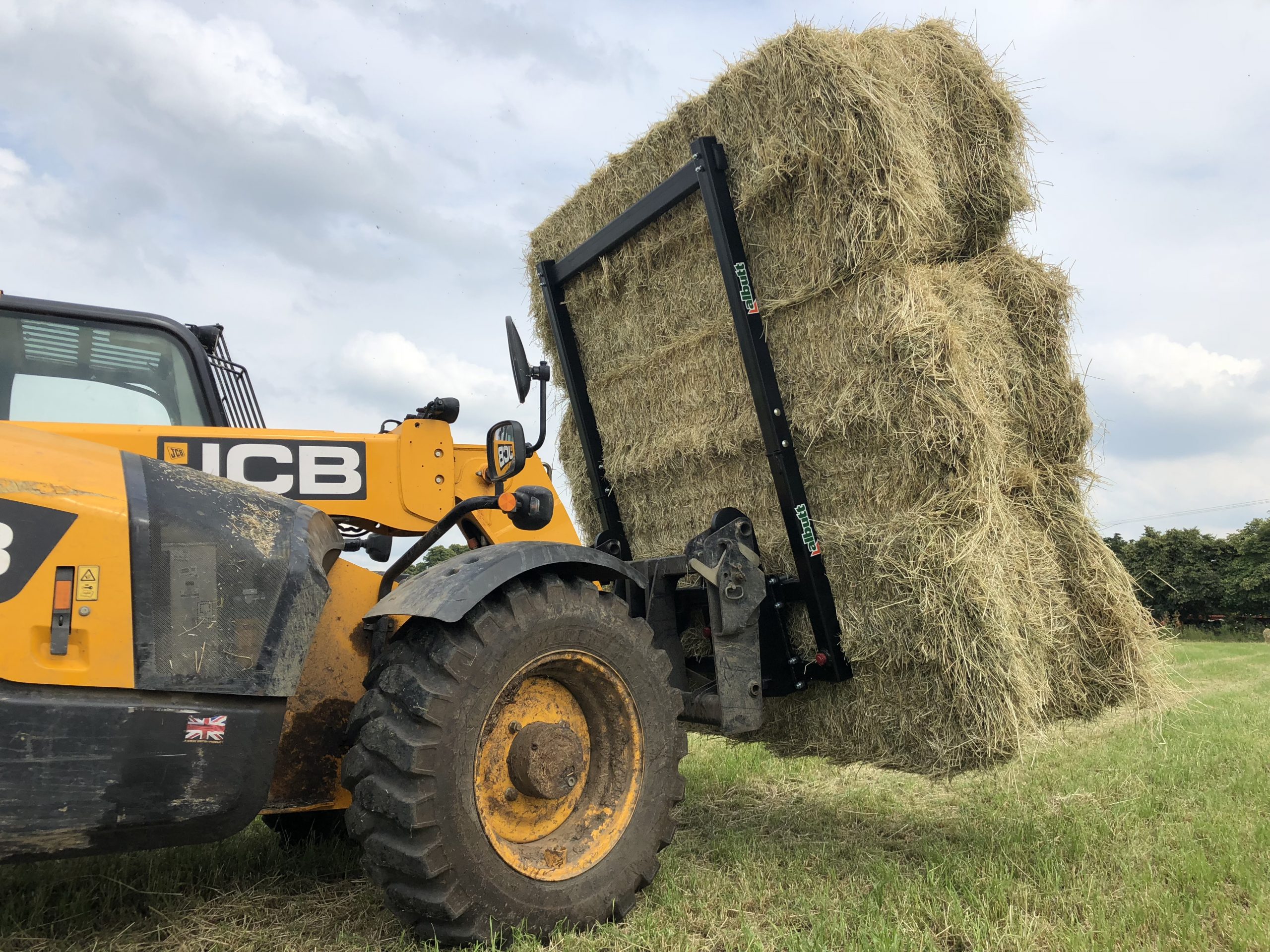

Rectangular Bale Spikes
- Removable back frame – 2136mm tall with frame / 1080mm tall without frame
- Substantial heavy duty box section design
- 3 x 980mm KV forged steel tines
- Optional fold up tine facility
- Tines mounted in steel bushes
- Normally in stock
- Fold up tine option
- Recommended to be used with Albutt’s bolt on bracket system
- For 3 x mini hesstons / 2 x hesstons
Model | Tines | Will Handle | Weight |
---|---|---|---|
F131 | 3 x 980mm | 3 x mini hesstons / 2 x hesstons | 153kgs |
F131/FT | 3 x 980mm | 3 x mini hesstons / 2 x hesstons (Fold Up Tines | 185kgs |

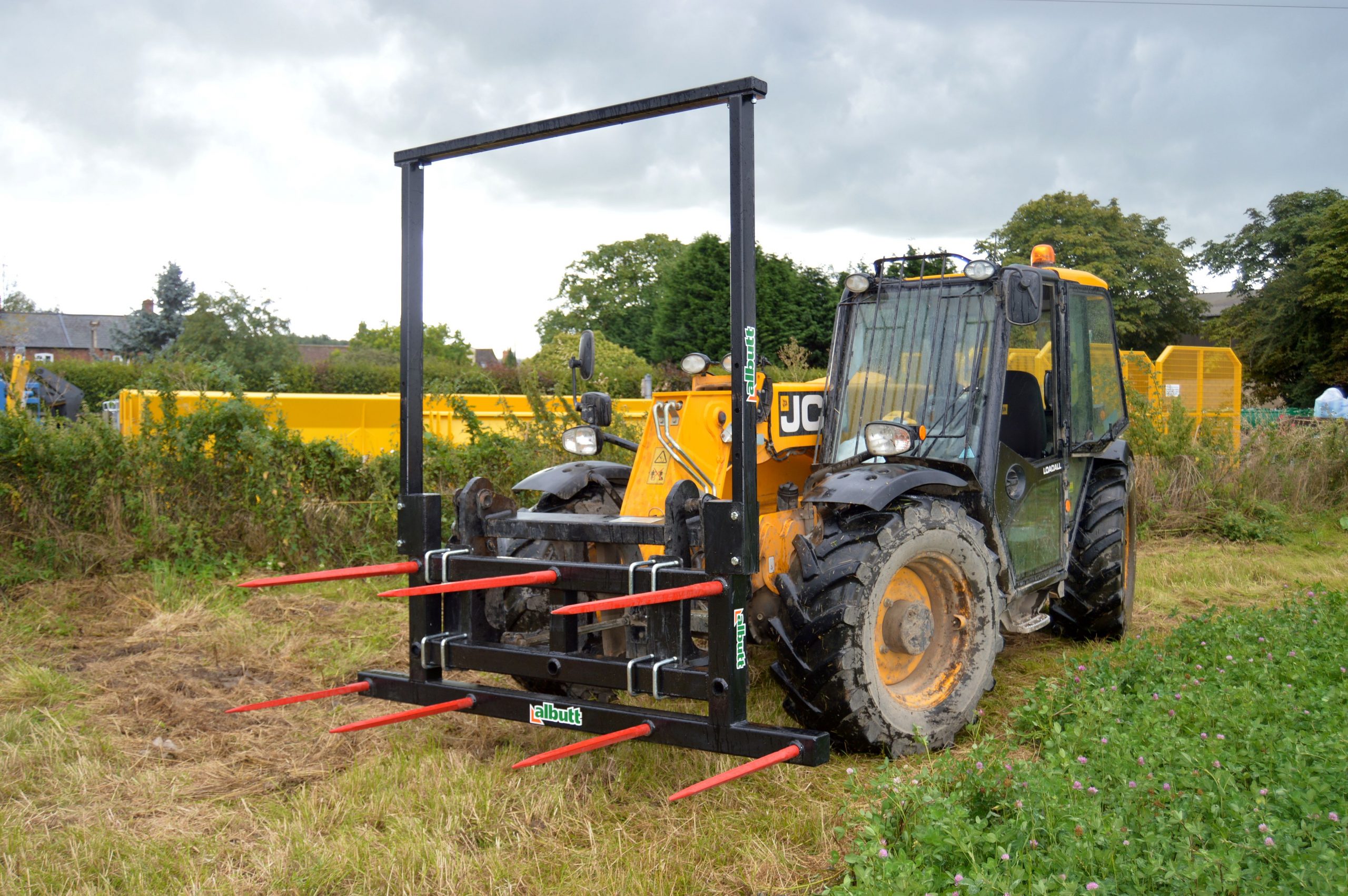

Multi Bale Spikes
- Height adjustable back frame
- Substantial heavy duty box section design
- 7 x KV forged steel tines
- 3 of the 7 tines can be moved to suit bale height
- Tines mounted in steel bushes
- Recommended to be used with Albutt’s bolt on bracket system
- 2200mm wide
- Maximum height 2270mm
- Minimum height 1770mm
Model | Tines | Will Handle | Weight |
---|---|---|---|
F125 | 3 x 980mm / 4 x 810mm | 2 x rounds / 2 x hesstons / 3 x mini hesstons / 4 x quadrants / 6 x mini quadrants | 210kgs |
